Actuator Feed Limit & Pressure Regulator Valve Repair Kit
with Tools
Fits all 5L40E 1999-on

  1. Distributor Part Numbers
    TransGo 5L4-ACT-VL
    A & Reds K60912
    Capital Core A144741FK
    MST 5L4-ACT-VL
    Natpro K63886
    OTS 55754-ACT
    PNH TG134741K
    PTW K63886
    Summit NA
    Transtar T134741K
    WIT A114741FK
  2. Documents
  3. General Details

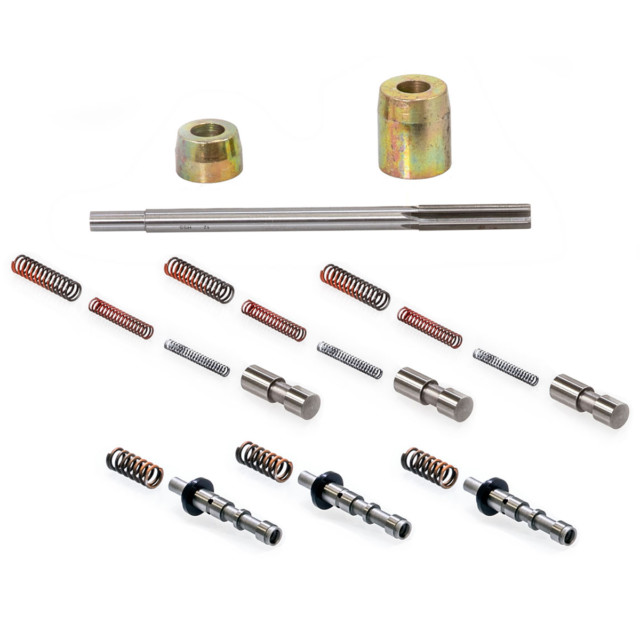

    This TransGo 5L40 AFL and Pressure Regulator kit includes a reusable reamer, two seal protector tools as well as enough assemblies to fix three units. The PR valve is a precision ground USA-made hardened steel valve. It has re-positioned longer lands so that both ends of the valves have better support which promotes less wear. As a result, this new valve is a fix even with substantial bore wear. The oversized AFL valve is also a precision ground hardened steel valve that is made is the USA that features longer lands for increased durability. However, being that it requires an oversized valve, the AFL bore needs to be reamed.

    If you already have the reamer for the AFL bore, then order the refill kit TransGo part # 5L4-ACT-VL5 instead.

    • Reusable high-quality USA-made steel reamer
    • Forward clutch piston seal protector
    • Coast clutch piston seal protector
    • (3) Oversized USA-made hardened steel actuator feed limit valves
    • (3) Large springs for AFL valves
    • (3) Small springs for AFL valves
    • (3) Drop-in precision USA-made hardened steel PR valves
    • (3) PR valve spring seats
    • (3) PR valve springs
