Vacuum Modulator Kit
Fits 1993-15 4L60E, 4L65E, 4L70E Transmission Removal Not Required

SKU: 46-MOD Category:
  1. Distributor Part Numbers
    TransGo 46-MOD
    A & Reds K61908M
    Capital Core T74431A
    MST 46 MOD
    Natpro K51879V
    OTS 46-MOD
    PDQ TG-46-MOD
    PNH TG74431A
    PTW K51879V
    Summit NA
    Transtar T74431A
    WIT A74431A
  2. Documents
  3. General Details

    Great for transplants! Provides a more aggressive and tunable pressure boost curve with engine vacuum instead of vehicle PCM controlling PCS/EPC Solenoid. Note: This kit does not eliminate the need for TCM shift controls.

    This TransGo 46-MOD kit fits 1993 to 2015 General Motors vehicles equipped with the 4L60E, 4L65E and 4L70E automatic transmission. High-performance applications often require an alternate source for line pressure regulation because the vehicle is equipped with a non-reprogrammable electronic control module. This kit makes a nice alternative for a more reliable and tunable pressure control system.

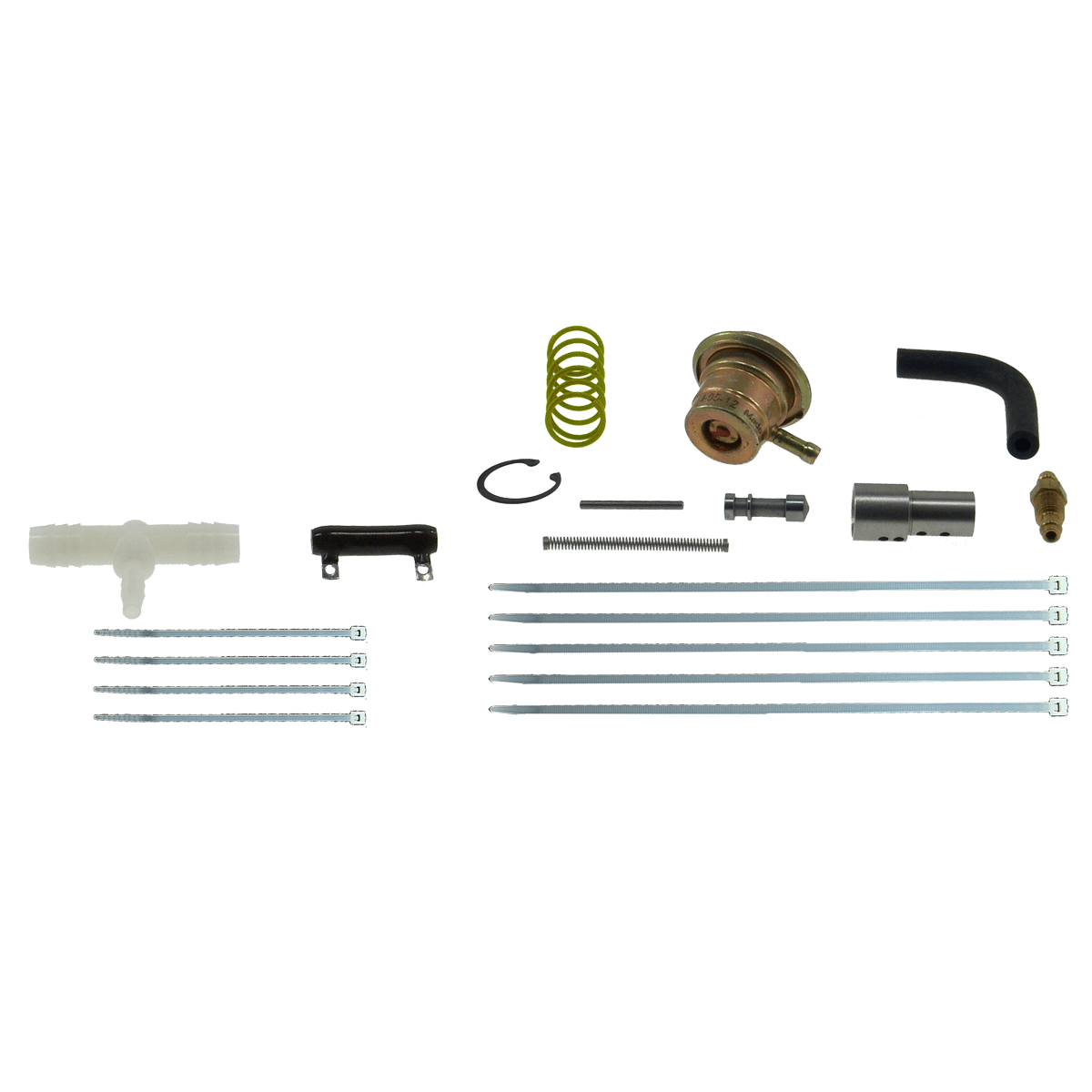

    Features and benefits:

    This TransGo internal modulator kit provides tunable line pressure regulation with a vacuum modulator instead of the vehicle PCM controlling the EPC solenoid. The kit includes everything needed to add the internal modulator system with the oil pan off the transmission. From the outside of the transmission you will need to connect it to an intake manifold vacuum source, however hardware is not provided for this. In addition, it comes with an oil pan based resistor to pacify the control module for the missing EPC solenoid in applications where the computer will still manage the gear changes.

    • Pressure regulator valve spring and snap ring
    • Brass fitting
    • Vacuum modulator, pin, valve and bushing
    • Elbow vacuum hose and spring
    • (4) Short zip ties
    • (5) Long zip ties
    • Vacuum tee
    • Resistor
